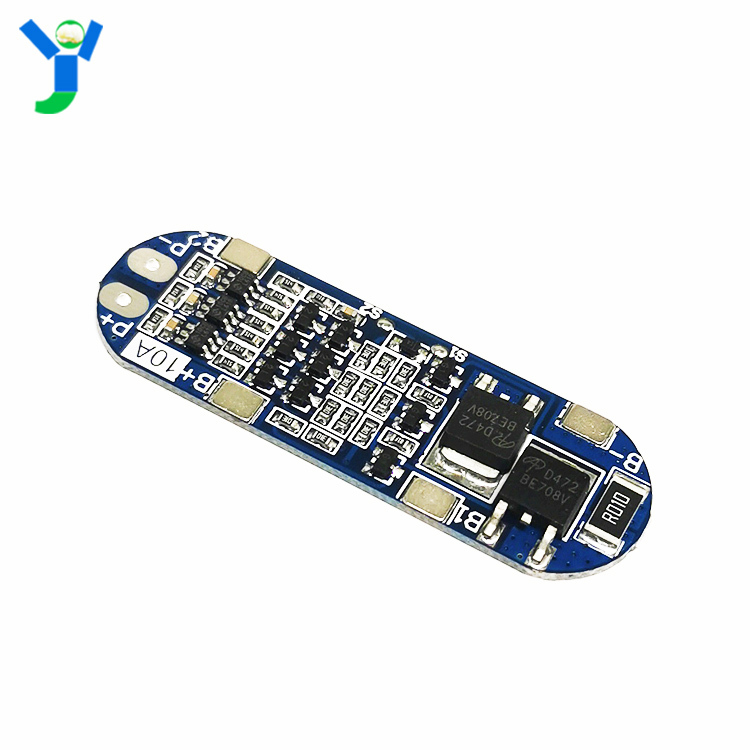

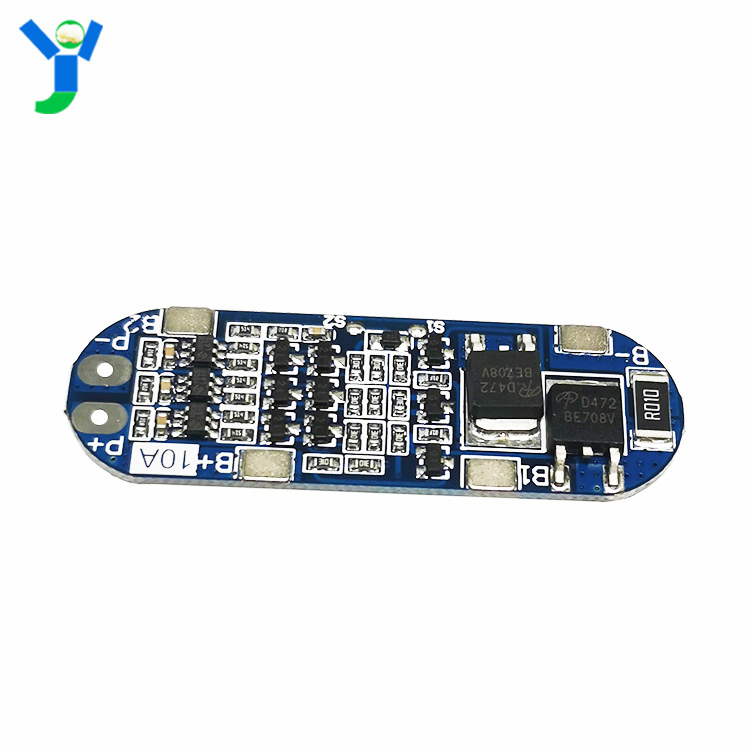

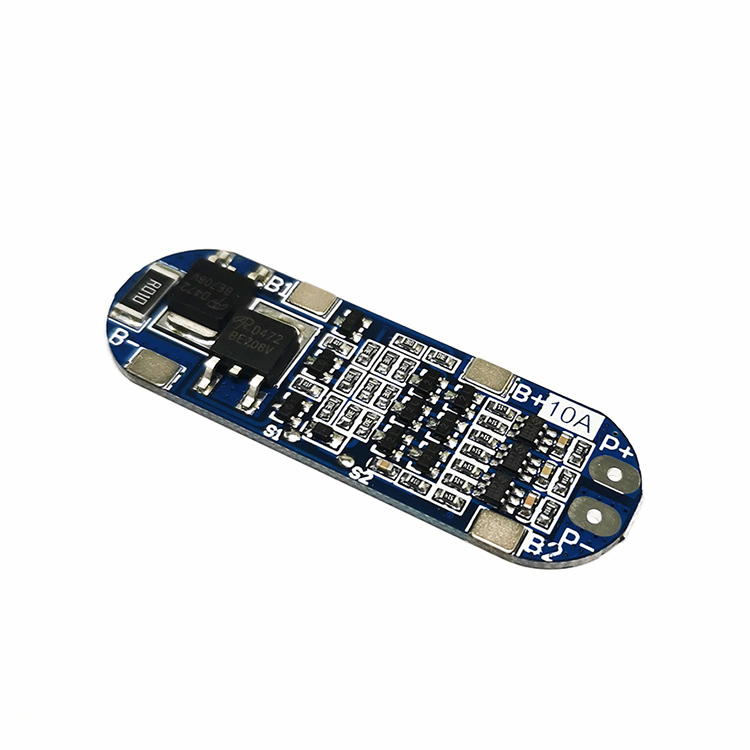

Bảng Mạch Bảo Vệ Pin Lithium 3 Dây 11.1v 12v 12.6v
11 Đánh Giá
108 Đã Bán
48
13.300 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ bảy 26/12/2020 lúc 09:18 CH
Product description:
This protective plate cannot be used for lithium phosphate batteries, hernia lamp, electric drill battery, electric fish machine battery, electric bicycle battery, children 's car batteries, 775 (4a) Above motors, 1w led, customers for the above combination purchases are kindly advised to note。
The power range described is applicable to the following products:
Massager battery、 led、 12v、 solar lamp battery、 monitor backup power supply、 and other products.
Note: Discharge products above 3a current, the battery discharge multiplier is 3 c or more.
Formula for calculating multipliers: Battery with a 1c multiplier, 2000 capacity equals 2ah x 1 2a upper working current.
3c, 2000 capacity equals 2ah x 3 6a upper working current.
The battery will heat up in use is that battery multipliers are not applicable, this situation cannot be used for a long time, the battery will damage quickly.
Points of note:

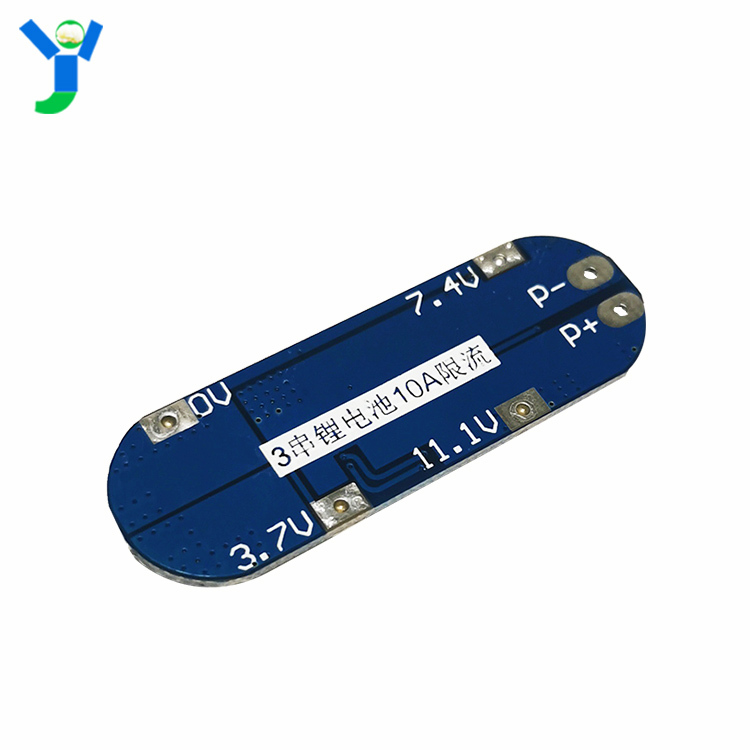

- 0v (B -)、 3.7v (B1)、 7.4v (B2)、 11.1v (B +) Don 't deliberately short circuits
- recharge the line after the line is fixed, there will be an output.
- when linking 3 cells in series, please make sure the voltage of each battery group is the same, if not, please fill each group of batteries separately and then use them in series. Discharge test, the group of batteries with the fastest drop in voltage is a poor battery.
Warm tips: Don 't mix good batteries with bad batteries The closer the capacity/internal resistance of 3 groups of batteries, the better (2 + Use effect of 1 differential battery:the effect of 3 differential batteries)。
Properties of the lithium battery protection plate:
Model model: Hx-3s-fl10-a
Overcharged voltage range: 4.25-4.35v 0.05v
Size: 53x17 x
Overload voltage range: 2.3-3.0v 0.05v
Upper working current: 6-8a
Working temperature: -40--- + 50° c
Upper limit instantaneous current: 10-13a
Storage conditions: -40-- + 80° c
Static current: Less than 30ua
Active life: More than 30,000 hours
Internal resistance: Less than 100m
Short circuit protection: Protectable, delayed self-recovery.
Charging voltage: 12.6v-13v
Specifications:
53x17 x 4.0mm 2110-cb aod472x2
