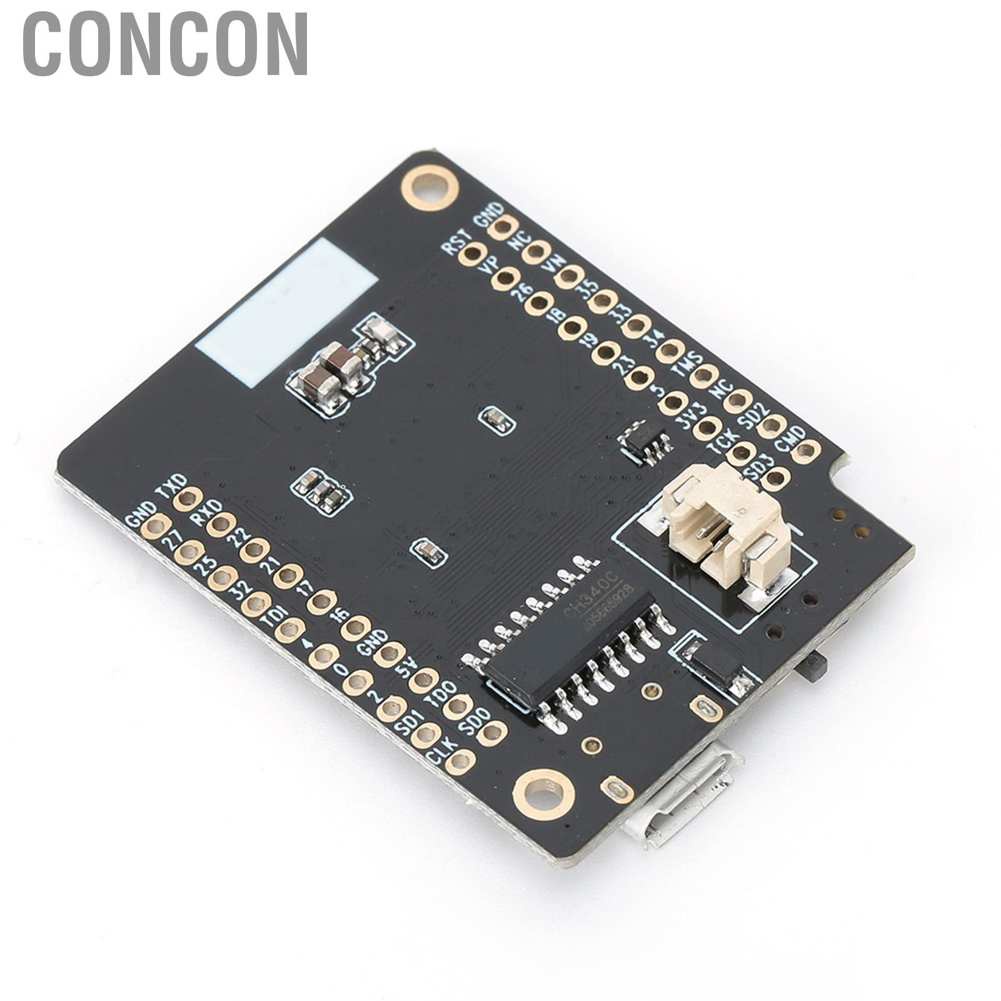

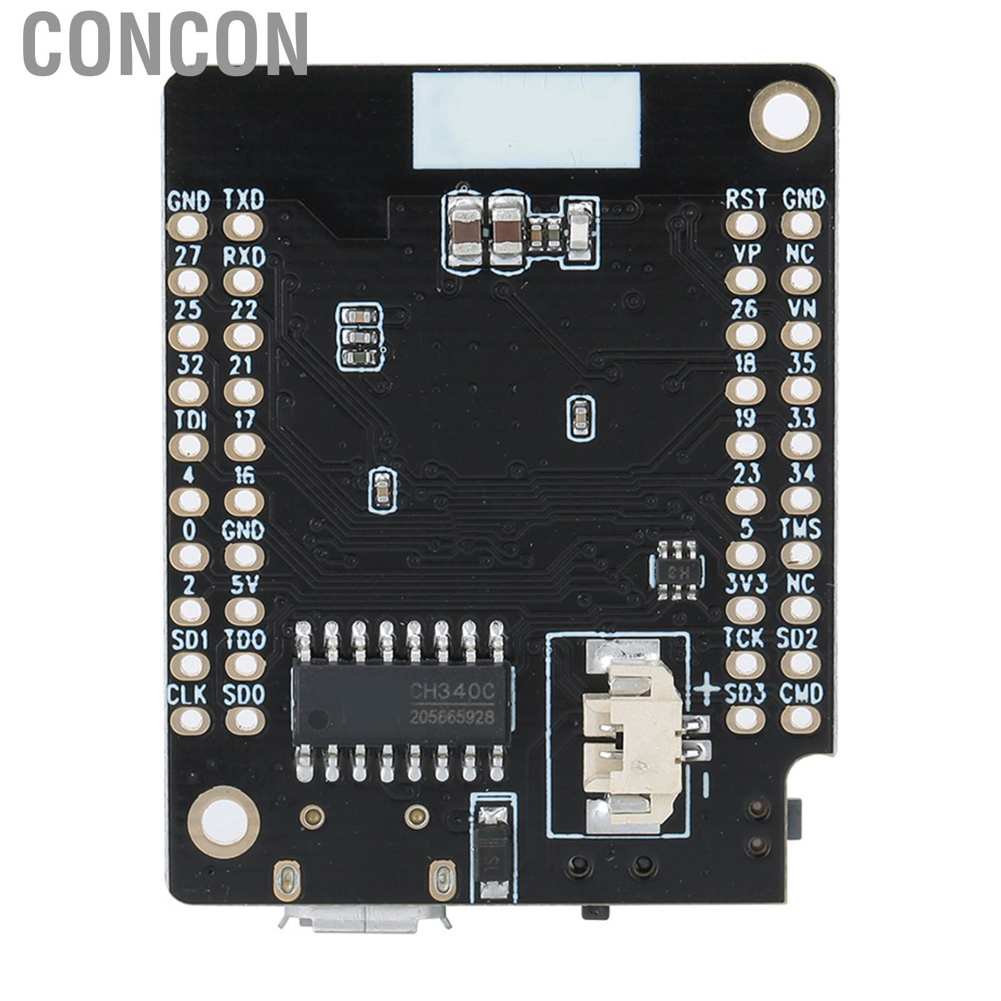

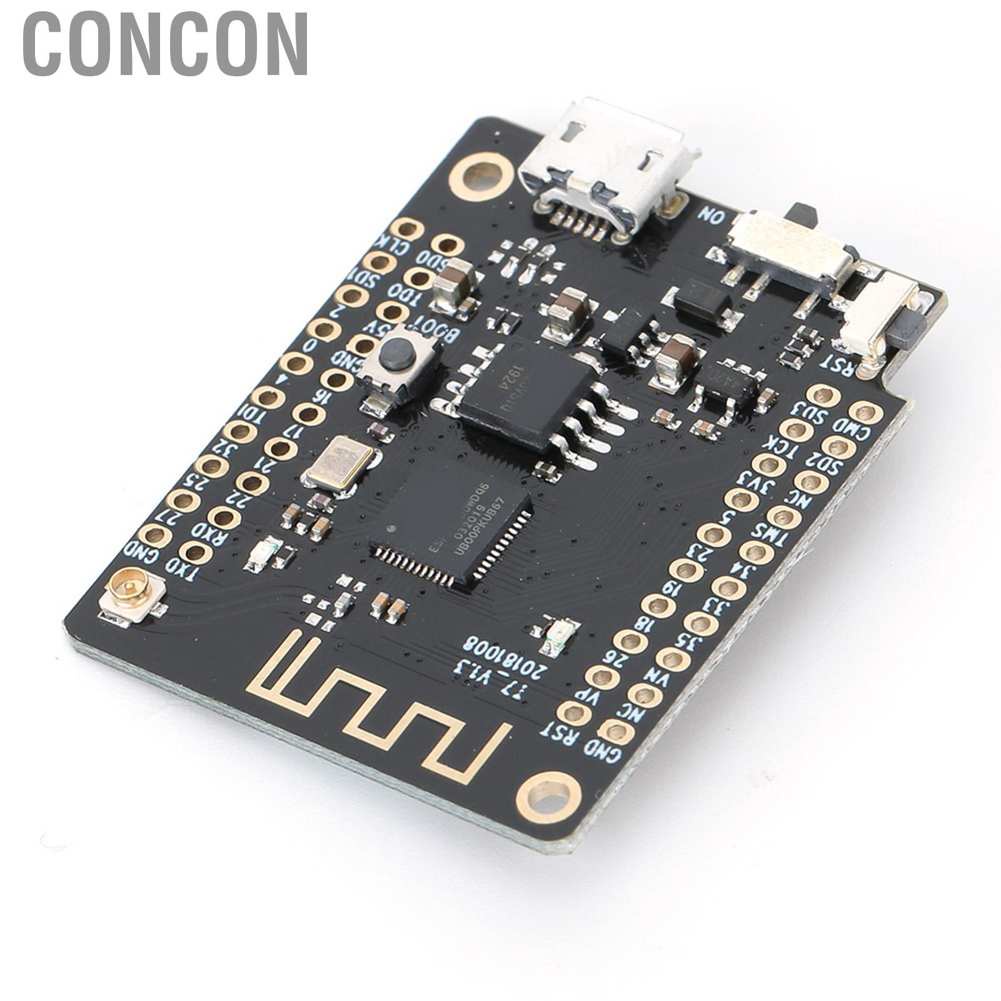

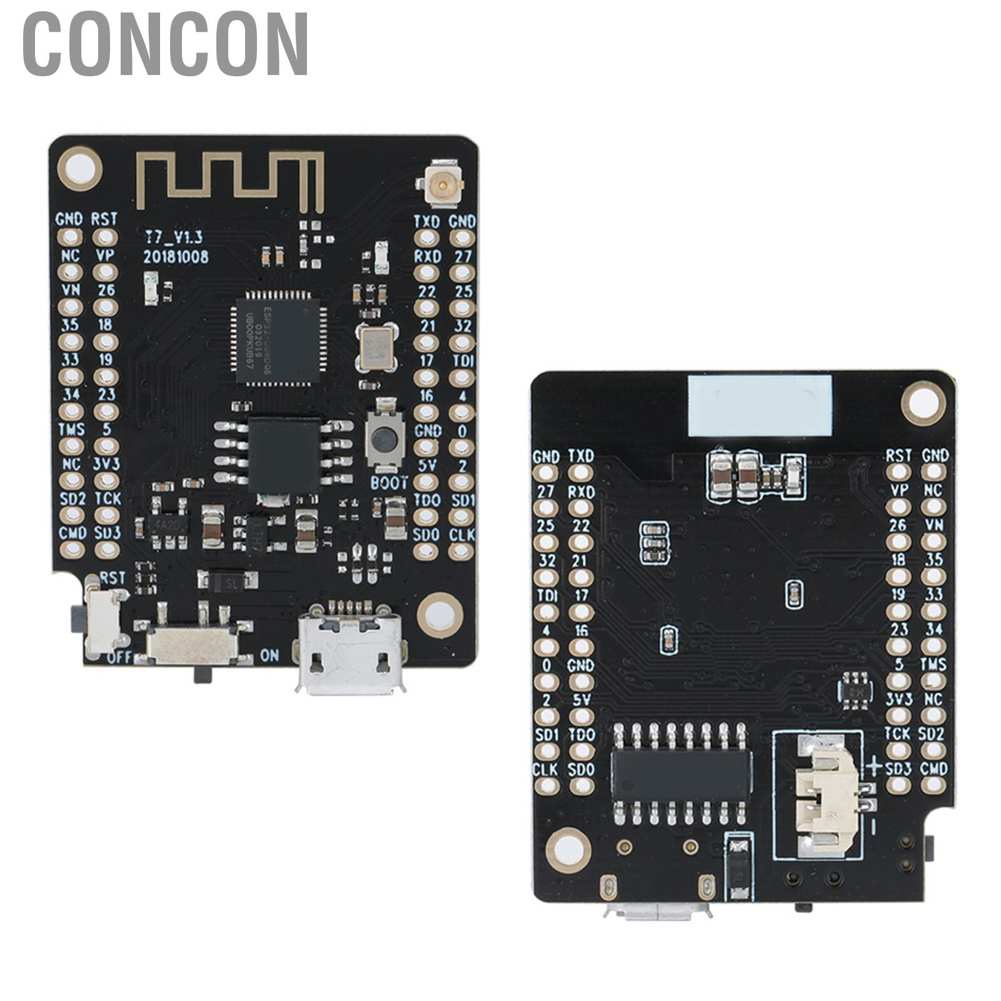

Bảng Mạch Phát Triển Wifi Ttgo 32 Bit Lx6 Mini32 V2.0.13 Esp32 Mới
0 Đánh Giá
0 Đã Bán
76
160.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ hai 15/11/2021 lúc 09:45 CH
_____________♥♥♥♥♥♥CONCON♥♥♥♥♥♥_____________
━(*｀∀´*)ノ亻!Welcome to our store, sell the best quality items.
✔Ready Stock ✔Fast Shipments✔ Lowest price
✔Quality Checked✔Brand new 100%
★If you need a free gift, please leave a message on the order (please attach a screenshot of the shop you follow).
★★Tip★★
✌We will be based on your guests in your country to send the corresponding adapter plug.
_______________❀Product Information❀______________
Feature:

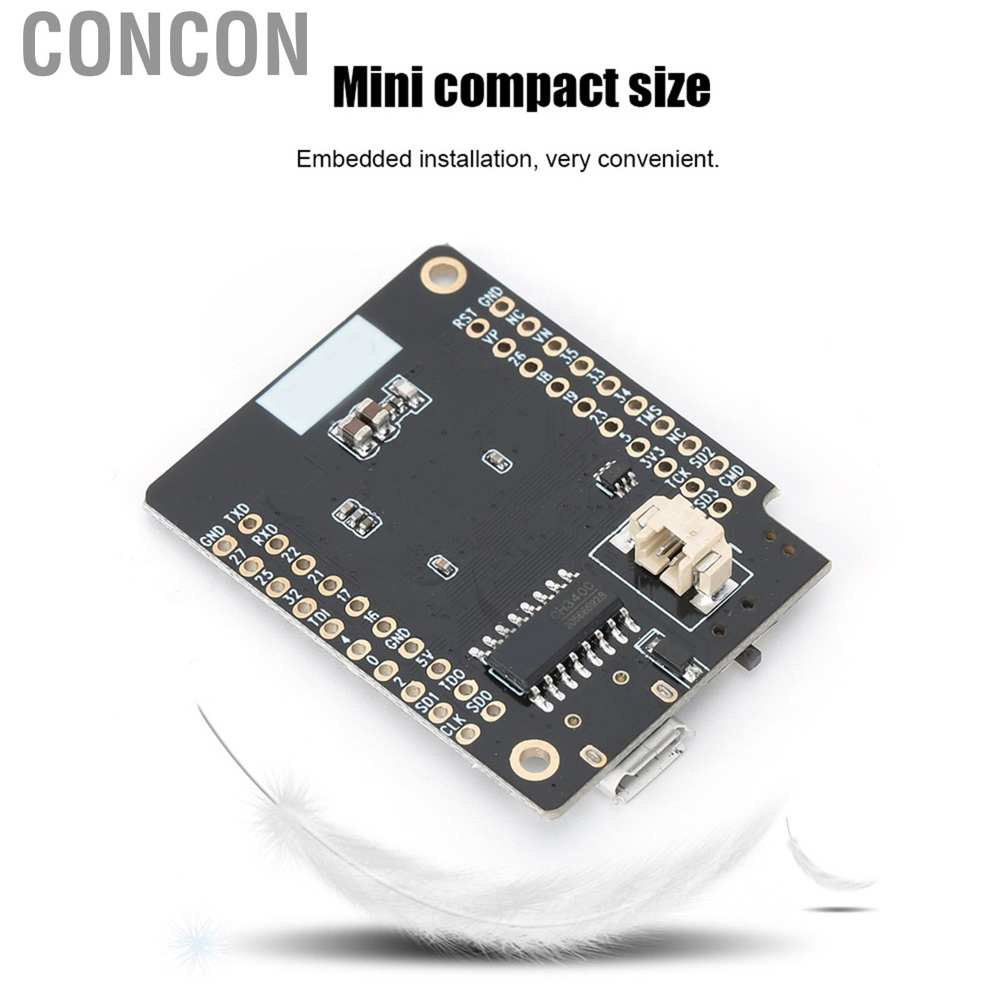

1. Mini size, compact and lightweight, embedded installation, very convenient.
2. With high specification process, carefully welded, precise hole position, full-featured.
3. The main chip ESP32, wireless Internet access, the protocol is compliant with Bluetooth 4.2 / BLE.
4. Protocol 802.11 b / g / n / e / i (802.11n, rate up to 150Mbps).
5. ESP32, dual core Xtensa 32 bit LX6. Up to 240MHz. 520kB internal SRAM. 4MB external flash.

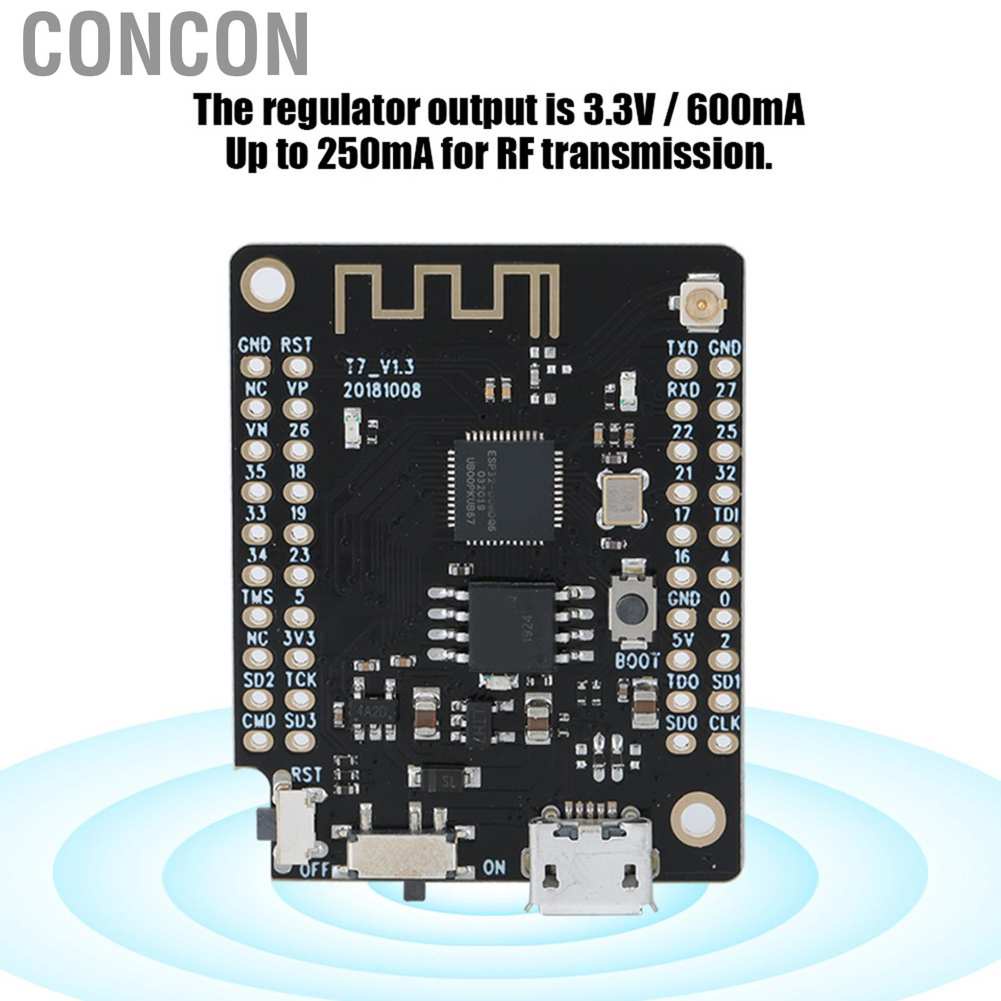

6. The regulator output is 3.3V / 600mA, and the RF transmission is up to 250mA.
Specification:
Item Type: Module
Main Chip: ESP32
Flash Chip: 25Q32
Charging IC Chip: TP4054
USB to Serial Port Chip Port: CH340C
ESP32 VCC Range: 2.2V-3.6V
VBAT: Direct Connection to Battery (And Charger)
VUSB: Direct Connection to USB (5V)
VCC: Regulator Output 3.3V / 600mA
Up to 250mA for RF Transmission
Wireless Internet: 802.11b / G / N / E / I
WPA/ WPA2/ WPA2 Enterprise Edition / SPS
Bluetooth: Bluetooth 4.2 / BLE

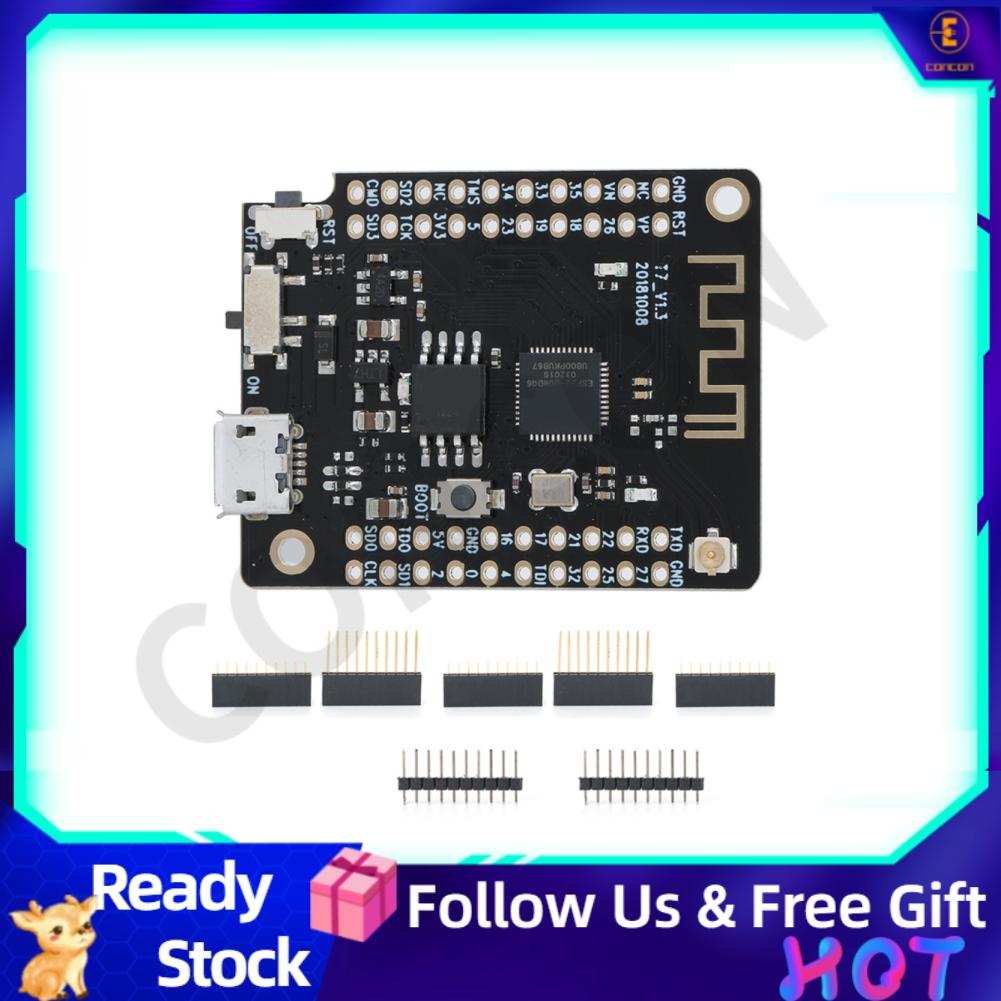

Package List:
1 x WiFi Bluetooth Module Development Board
2 x Pins
4 x Short Needles
2 x Long Needles
