** Welcome to Uebtech! Please look carefully at the product details before ordering. If you have any questions, please ask customer service (Monday-Friday, 9am-6pm), I hope to bring you a good shopping experience!

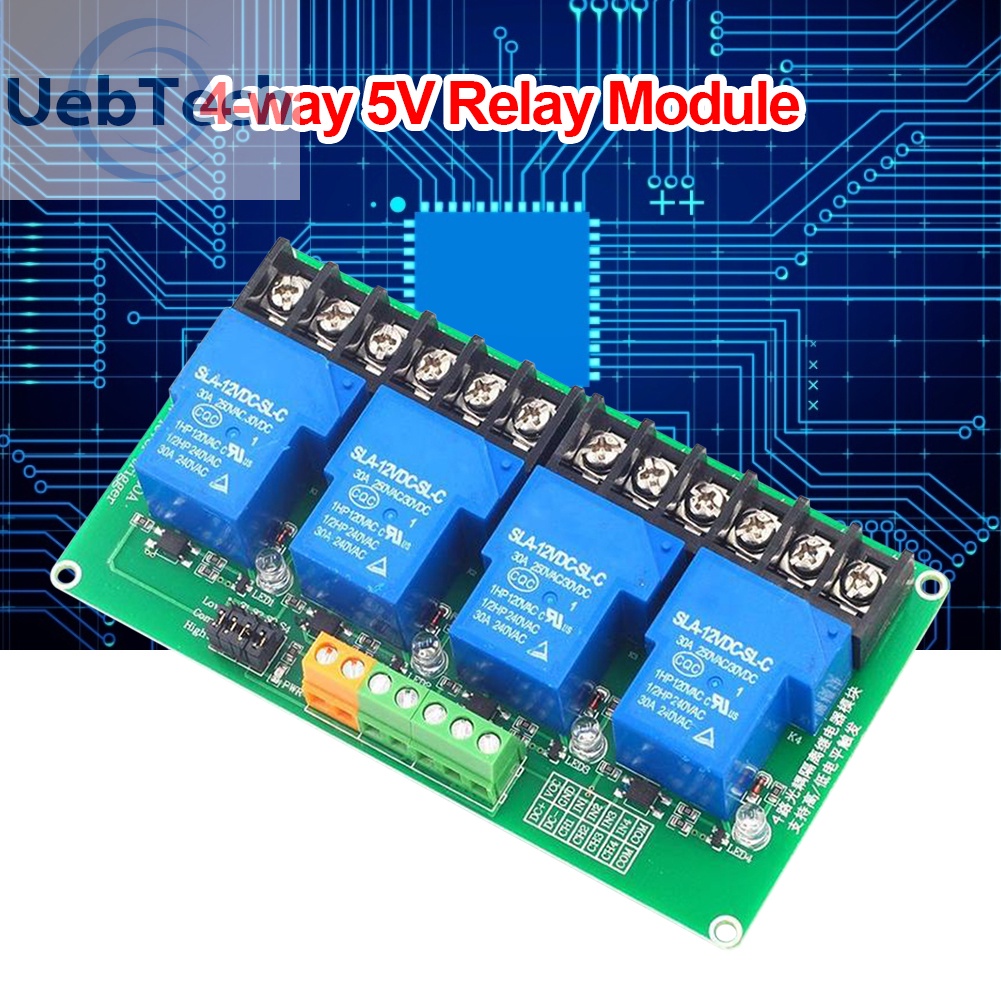

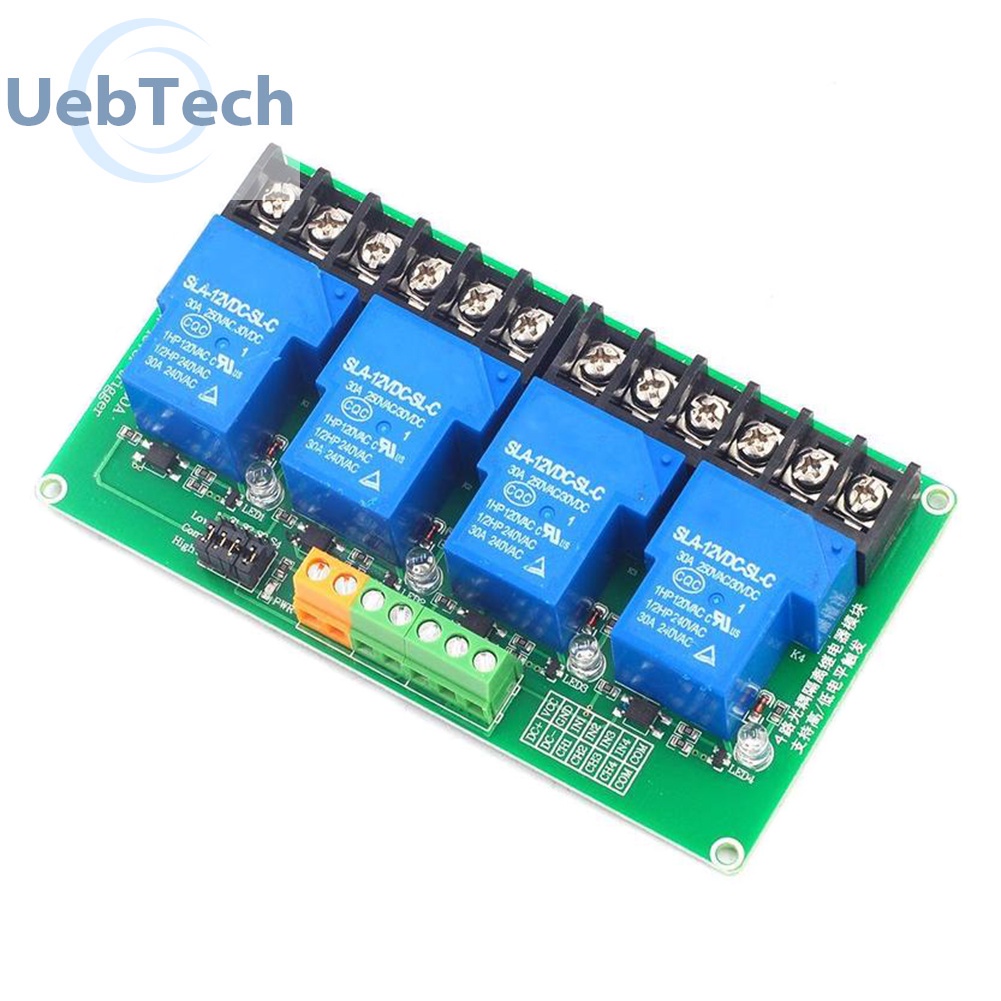

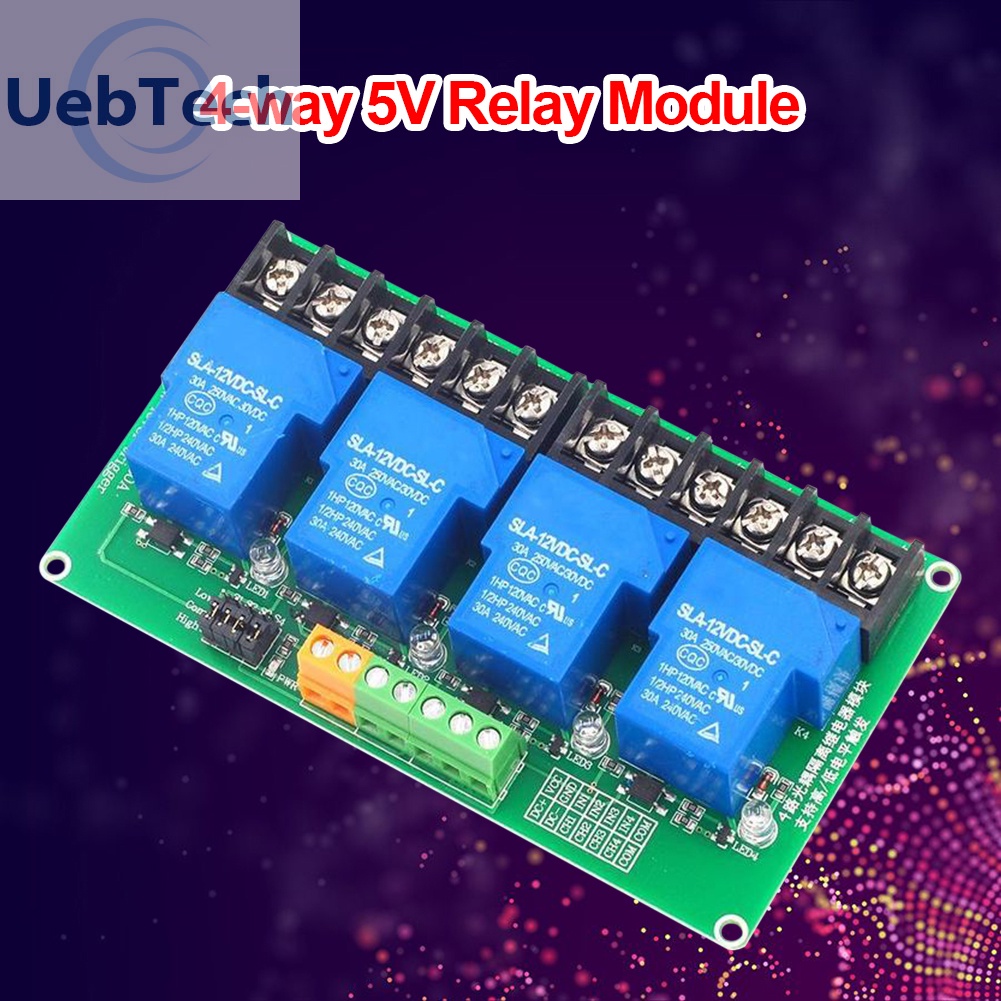

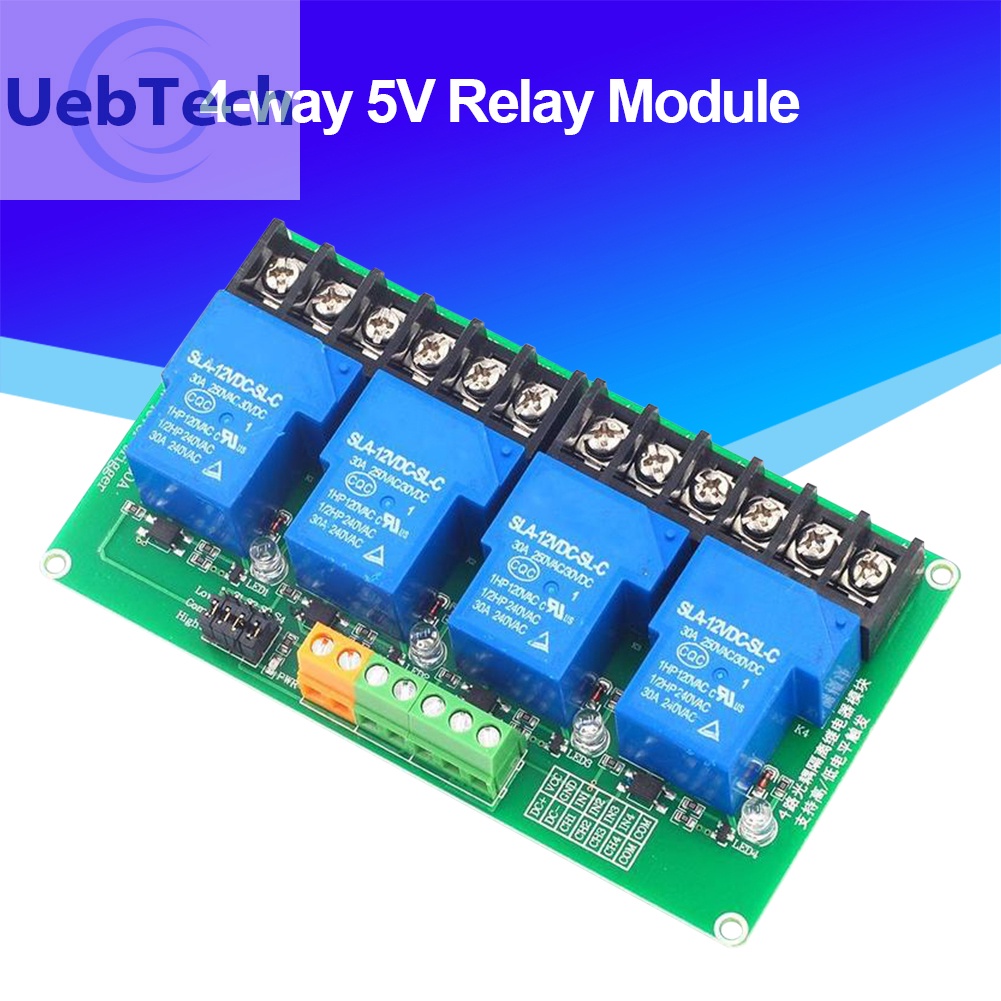

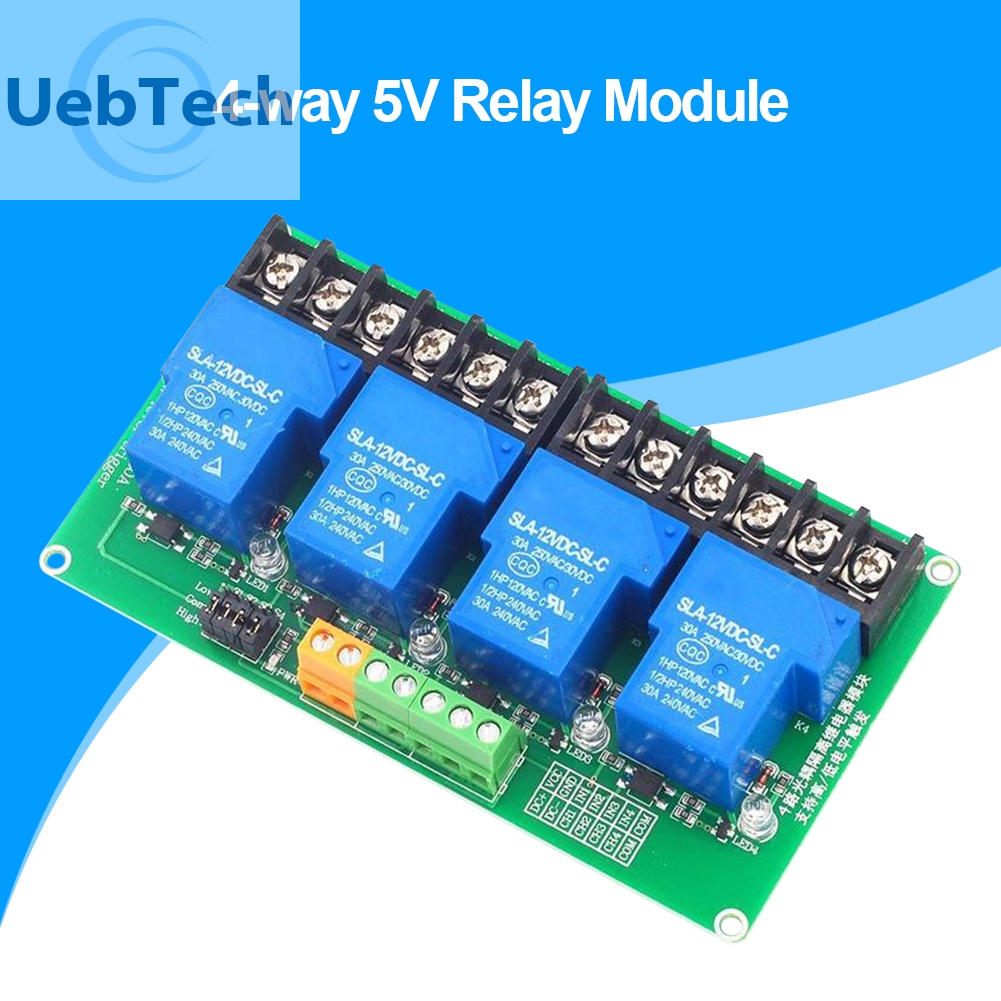

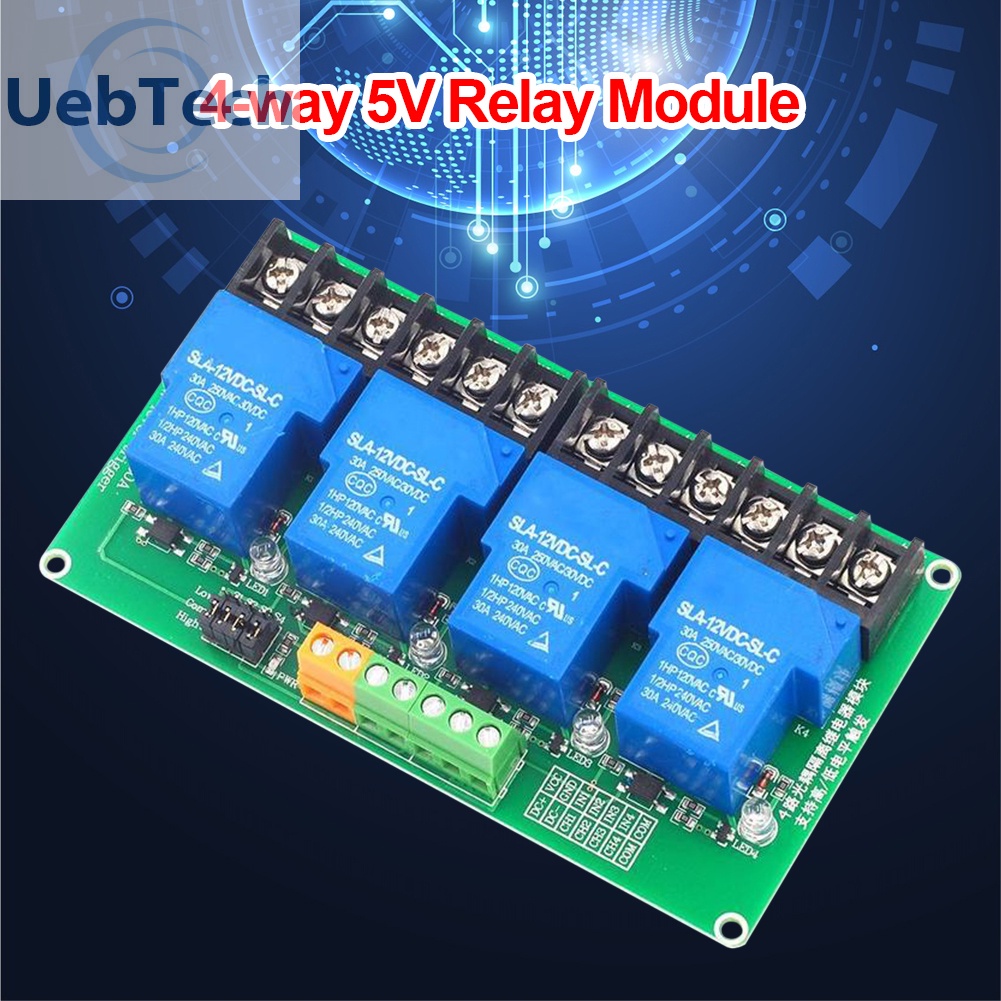

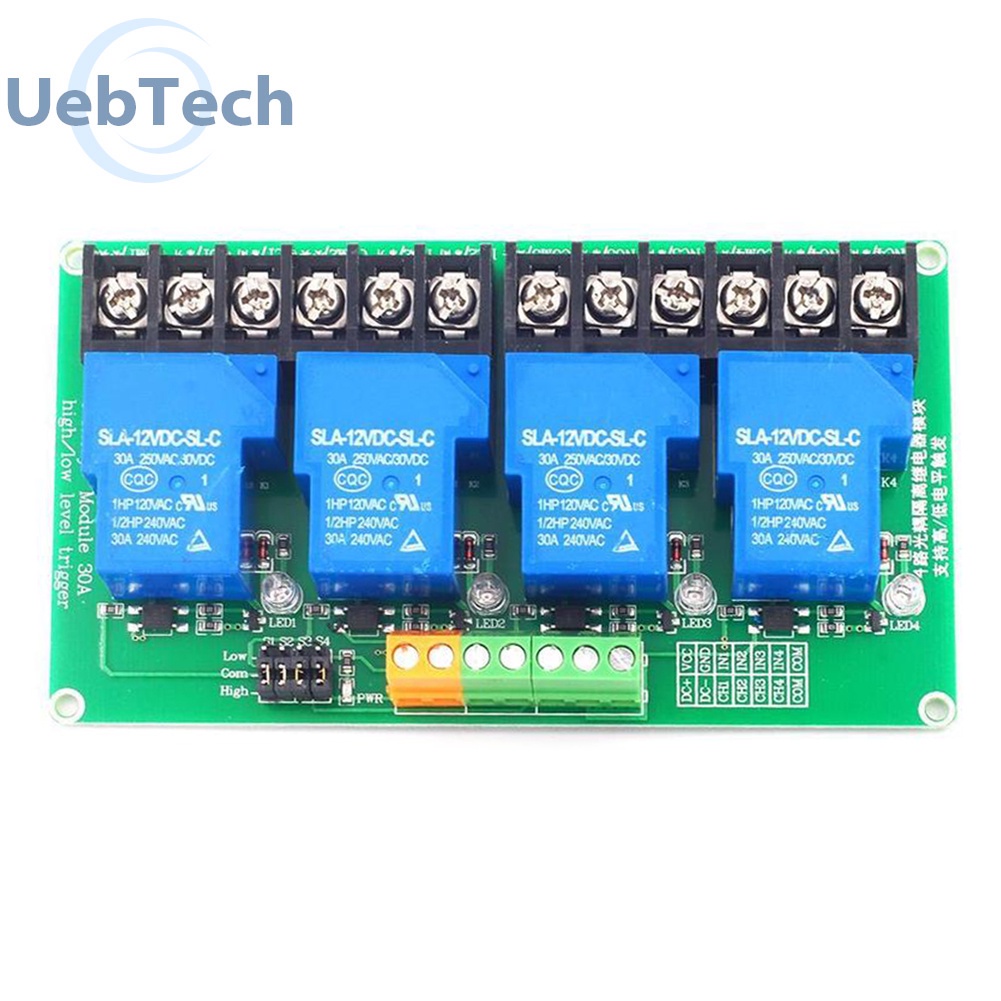

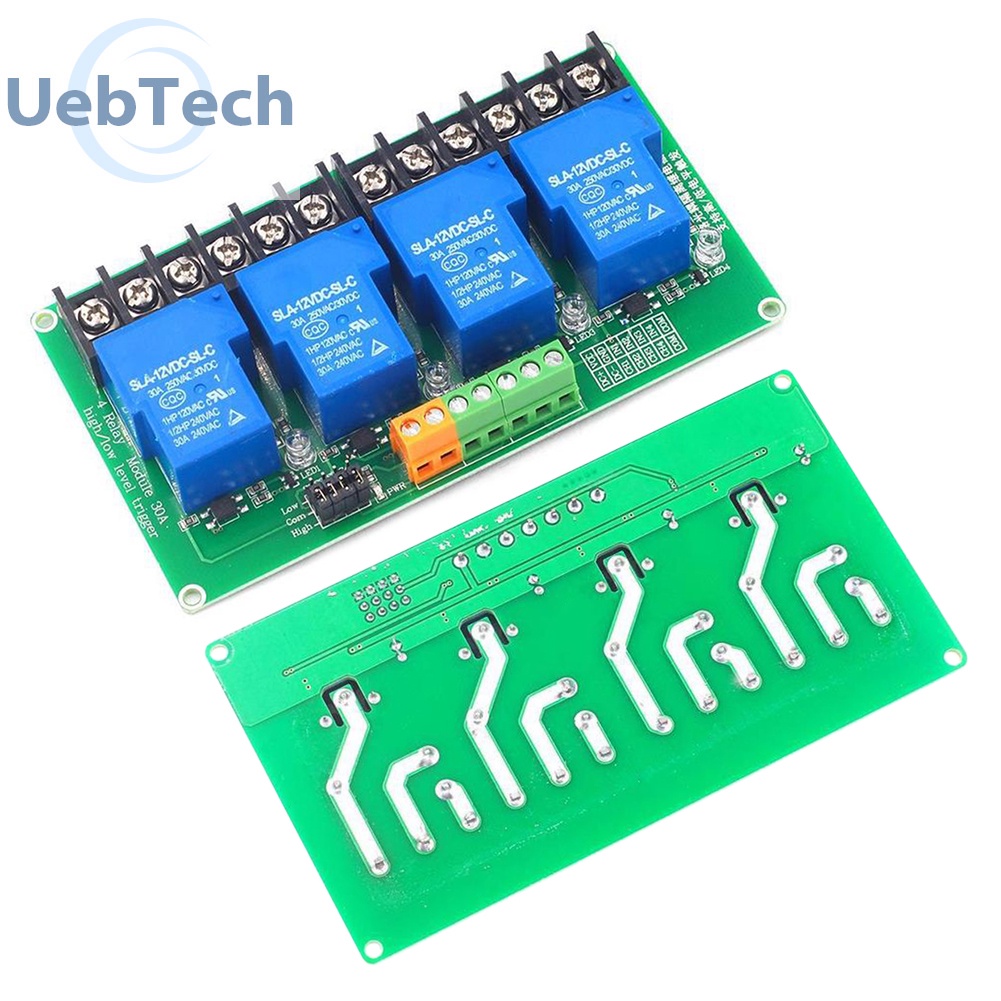

5V 30A 4 Channel High Current Relay Module Support High and Low Level Trigger Smart Home PLC Automatic Control Board
Specification:
Product name: 4-way high current relay module
Supply voltage: 5V
Quiescent current: 5mA
Maximum working current: 190mA
Trigger mode: Low level trigger / High level trigger
Refer to the figure below for the trigger voltage range
Load voltage: DC 30V or AC 250V
Load current: 30A
Relay life: More than 100,000 times
Product weight: about 175g
Structure size: 129*72*22mm (length*width*height)
Positioning hole size: 126.5*69.5mm
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Included:
1 X 4 Way 5V Relay Module
